GEMBATTERY OPzS Series: Proven Flooded Tubular Battery for High-Reliability Solar and Wind Power Storage

As the world transitions toward decentralized and clean energy production, the role of robust, long-duration energy storage becomes foundational. Solar and wind power systems—whether deployed in remote villages, industrial microgrids, or hybrid utility-scale projects—require batteries that can endure repeated deep discharges, harsh climates, and decades of service with minimal intervention. GEMBATTERY OPzS (Ortsfest Panzerplatte – stationary tubular plate) series delivers exactly that: a premium flooded tubular battery engineered for the most demanding renewable energy applications, combining time-tested technology with modern manufacturing excellence.

What Defines the GEMBATTERY OPzS Series?

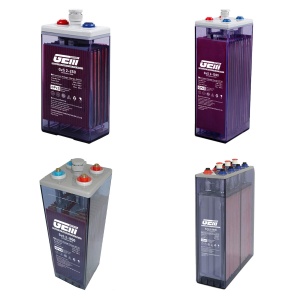

The GEMBATTERY OPzS series is a flooded (vented) tubular battery designed for stationary energy storage, particularly in solar photovoltaic (PV), wind turbine, and hybrid power systems. Unlike sealed VRLA batteries, OPzS cells feature a liquid electrolyte—dilute sulfuric acid—that is accessible for periodic maintenance, allowing for extended service life unmatched by most conventional batteries.

At the core of the OPzS design lies the tubular positive plate. Active material is encapsulated in a gauntlet of woven polyester or glass fiber, supported by a corrosion-resistant spine cast from a special Pb-Ca-Sn-Ag alloy. This architecture prevents active material shedding, the primary failure mechanism in flat-plate batteries, particularly under deep-cycling conditions. The negative plates are pasted flat plates, optimized for high hydrogen overpotential to reduce water loss. A transparent SAN (styrene acrylonitrile) container provides visual access to electrolyte levels and plate condition, while the large electrolyte reservoir reduces the frequency of water topping-up—typically required only once every 1–2 years under normal operating conditions.

Manufactured in compliance with DIN 40736, IEC 60896-11, and IEC 61427 standards, GEMBATTERY OPzS cells are available in capacities from 200 Ah to 3000 Ah (at C10 rate) in 2V configurations, with series/parallel combinations available for 12V, 24V, 48V, and higher system voltages.

Why OPzS Excels in Solar Energy Systems

Solar energy presents a classic storage challenge: generation peaks during midday, but demand often extends into evening and early morning. GEMBATTERY OPzS batteries are built to handle this daily duty cycle with exceptional resilience.

Deep Discharge Capability – Solar systems frequently operate at 60–80% depth of discharge (DoD), especially during winter months or consecutive overcast days. GEMBATTERY OPzS tubular plates are dimensioned for deep-cycle service, delivering 1500–1800 cycles at 80% DoD (depending on average temperature and charge regime). This performance ensures that the battery bank can absorb daily solar harvest and discharge it reliably through the night without premature capacity fade.

Low Self-Discharge – With a self-discharge rate of approximately 2–4% per month at 20°C, GEMBATTERY OPzS batteries retain stored solar energy effectively during low-irradiance periods, making them ideal for seasonal applications such as remote holiday homes or meteorological stations.

High Charge Acceptance – Solar charge controllers typically operate with varying current profiles due to passing clouds. OPzS batteries accept charge efficiently across a wide current range, and the flooded electrolyte allows for convenient equalization charging to reverse any mild sulfation that may occur during partial state-of-charge operation.

Wind Power Storage: Meeting the Challenge of Variability

Wind turbines impose a different stress profile: rapid fluctuations in output, frequent micro-cycling, and extended periods of partial charge when winds are calm. GEMBATTERY OPzS batteries handle these conditions with poise.

The robust tubular positive plate is mechanically stable, resisting vibration and the shedding that flat plates suffer under gust-induced charge/discharge cycling. Furthermore, the flooded design with a low-resistance separator (microporous PVC-SiO₂) ensures excellent ionic mobility, allowing the battery to respond quickly to sudden load changes or turbine overspeed events.

In wind-diesel hybrid systems—common in remote mining sites and island communities—GEMBATTERY OPzS banks serve as the primary storage buffer, smoothing turbine output and providing ride-through capability during wind lulls. The large electrolyte reserve also moderates temperature rise during high-rate partial charging, extending calendar life in unventilated enclosures.

Technical Excellence: Built for a 20-Year Service Life

GEMBATTERY engineers its OPzS series with a singular focus on longevity. The positive grid alloy—a proprietary Pb-Ca-Sn-Ag formulation—exhibits outstanding corrosion resistance, even at elevated operating temperatures. The gauntlet material is selected for optimal porosity and acid permeability, ensuring full utilization of active material while retaining mechanical integrity over thousands of cycles. Negative plates employ a high-purity lead alloy with organic expanders to maintain cold-cranking performance and reduce hydrogen gassing.

The result is a design float service life of over 20 years under IEC 60896-11 conditions. Under cyclic solar/wind duty, GEMBATTERY OPzS typically delivers 1500+ cycles to 80% DoD, translating into a total cost of ownership (TCO) significantly lower than AGM or lithium alternatives over a 20-year system horizon.

GEMBATTERY’s quality assurance includes ISO 9001, ISO 14001, OHSAS 18001, UL, CE, and RoHS certifications. Every cell undergoes rigorous formation, capacity testing, and leak testing before shipment, with destructive sample testing performed regularly to validate design margins.

Installation, Ventilation, and Maintenance Best Practices

Proper system design maximizes the return on your GEMBATTERY OPzS investment. For solar and wind applications, the battery bank should be sized to provide 3 to 5 days of autonomy at the intended DoD, balancing initial capital with cycle-life economics. Use a charge controller with temperature-compensated three-stage charging (bulk, absorption, float). Recommended absorption voltage is 2.35–2.40 V/cell at 20°C, with float at 2.20–2.25 V/cell. Regular equalization (typically every 3–6 months at 2.50–2.55 V/cell for 2–4 hours) helps maintain cell voltage balance and prevent stratification.

Because OPzS is a flooded design, adequate ventilation is mandatory to disperse hydrogen and oxygen gases evolved during charging. GEMBATTERY offers modular rack systems and outdoor battery cabinets that comply with safety codes while simplifying interconnection and inspection. Distilled water topping-up is recommended once per year in temperate climates and more frequently in hot environments—an accessible task that takes minutes but adds years to battery life.

Global Deployments and Real-World Performance

GEMBATTERY OPzS batteries have been commissioned in hundreds of renewable energy projects across Africa, Southeast Asia, Latin America, and the Middle East. Notable applications include:

Off-grid solar mini-grids for village electrification in sub-Saharan Africa

Wind-solar hybrid power plants for telecom tower (BTS) backup in India and Indonesia

Agricultural solar water pumping systems in arid regions of Australia and Chile

Island microgrids in the Pacific, combining diesel, wind, and solar with OPzS storage

Industrial peak shaving and UPS backup for manufacturing facilities with unstable grid supply

At recent industry exhibitions, including the Kazakhstan Renewable Energy Expo 2025, GEMBATTERY showcased its OPzS series alongside its OPzV gel line, emphasizing the OPzS value proposition for customers prioritizing lowest lifecycle cost and proven technology over premium sealed convenience.

OPzS vs. Alternative Storage Technologies

While OPzS requires periodic water addition, this small maintenance task is far outweighed by its lower upfront cost, robust cycle life, and the established global recycling chain for lead-acid batteries. For stationary solar/wind projects where access for maintenance is feasible, OPzS remains the gold standard for value and reliability.

Conclusion

The GEMBATTERY OPzS series embodies the ideal balance of durability, performance, and economic viability for solar and wind energy storage. Its tubular positive plates, generous electrolyte reserves, and high-quality materials deliver 20+ years of dependable service, while the vented design allows for straightforward maintenance that keeps operating costs low across decades of daily cycling.

For project developers, system integrators, and end-users who demand a storage solution that can withstand the rigors of renewable energy production—without compromising on safety, recyclability, or return on investment—GEMBATTERY OPzS batteries represent a proven, trustworthy choice. As the global renewable energy buildout accelerates, combining solar and wind generation with GEMBATTERY’s OPzS technology will continue to light homes, power industries, and drive sustainable development worldwide.
